2017 DEERE 35G MINI EXCAVATOR-(SOLD)
Call Today: 916.907.0902
Short Description

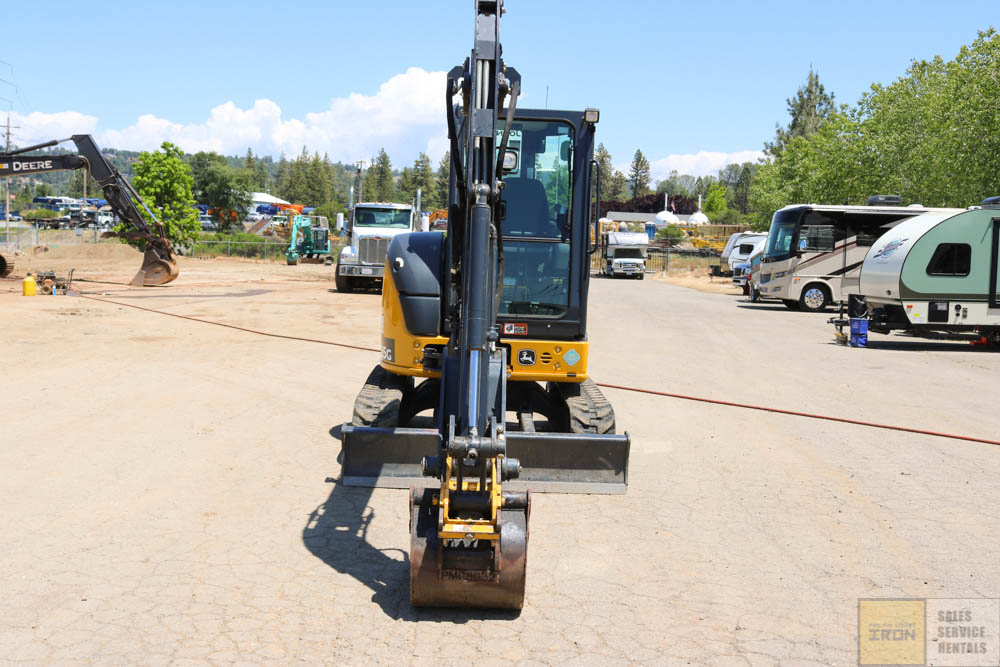

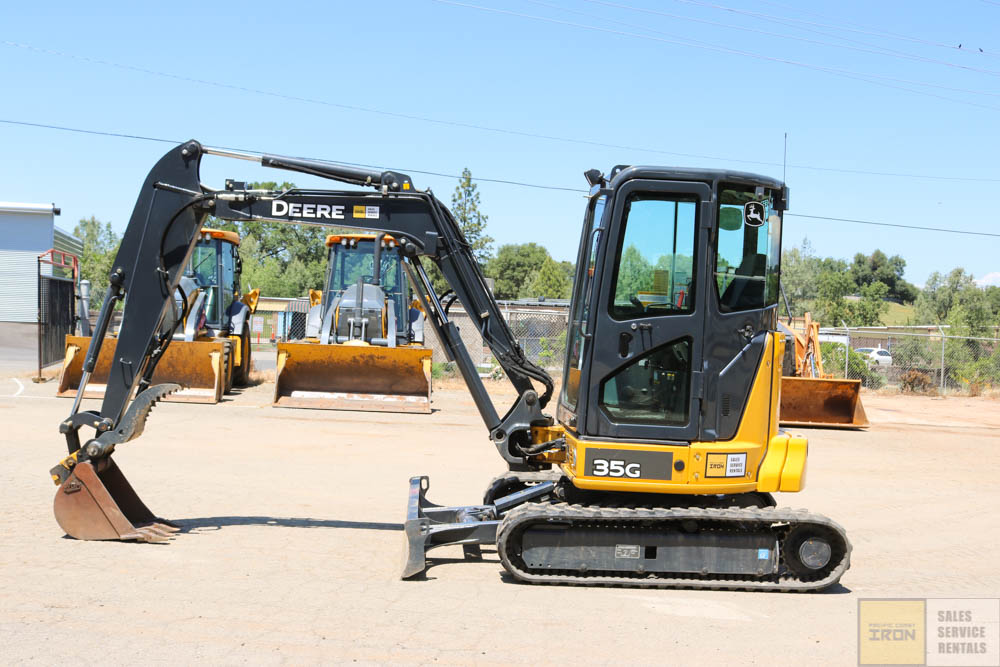

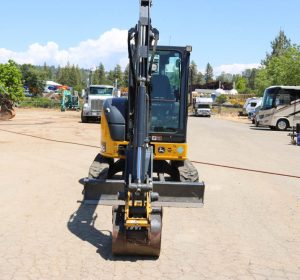

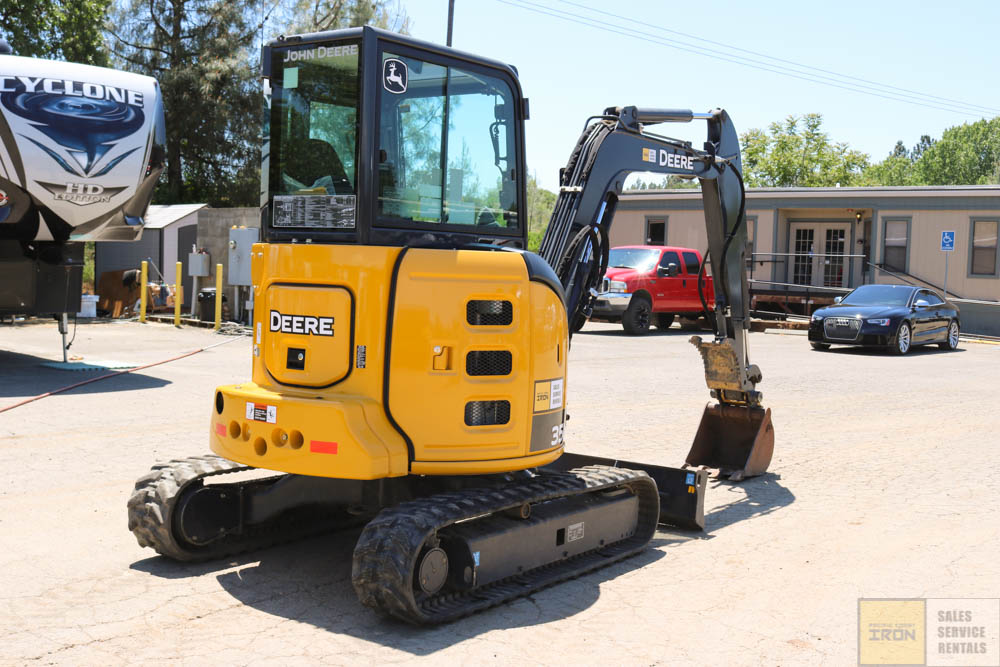

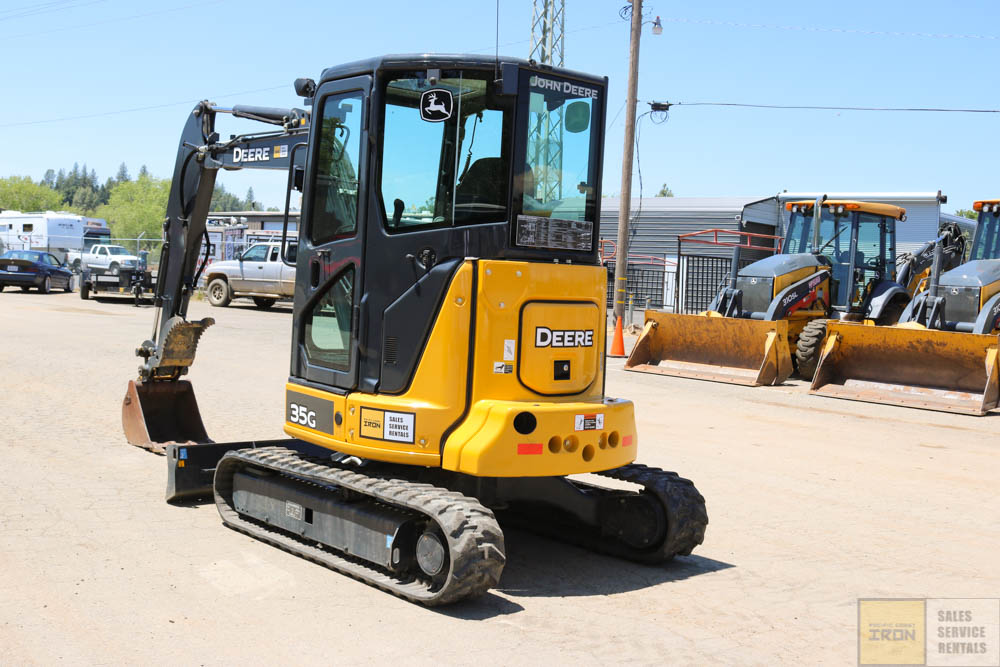

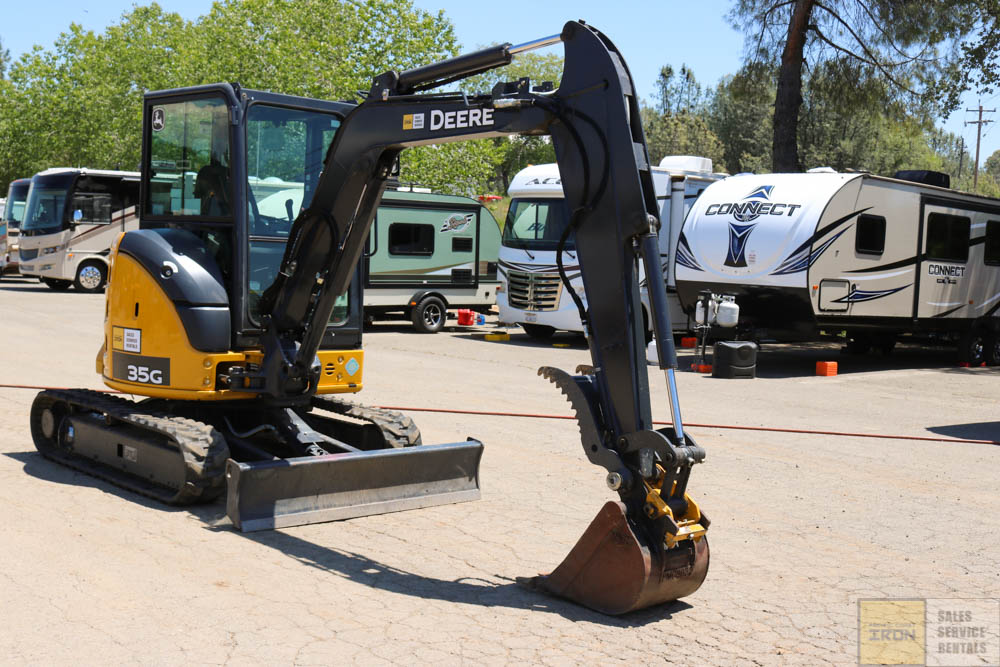

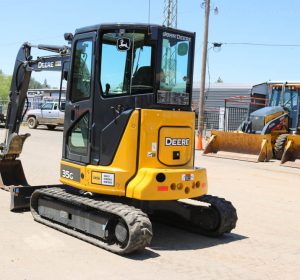

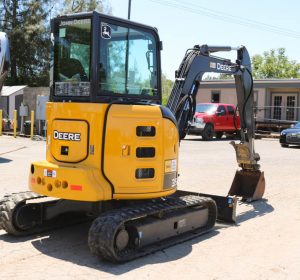

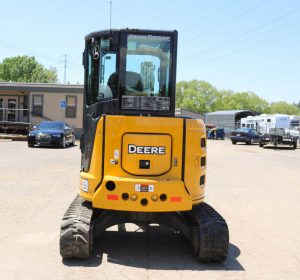

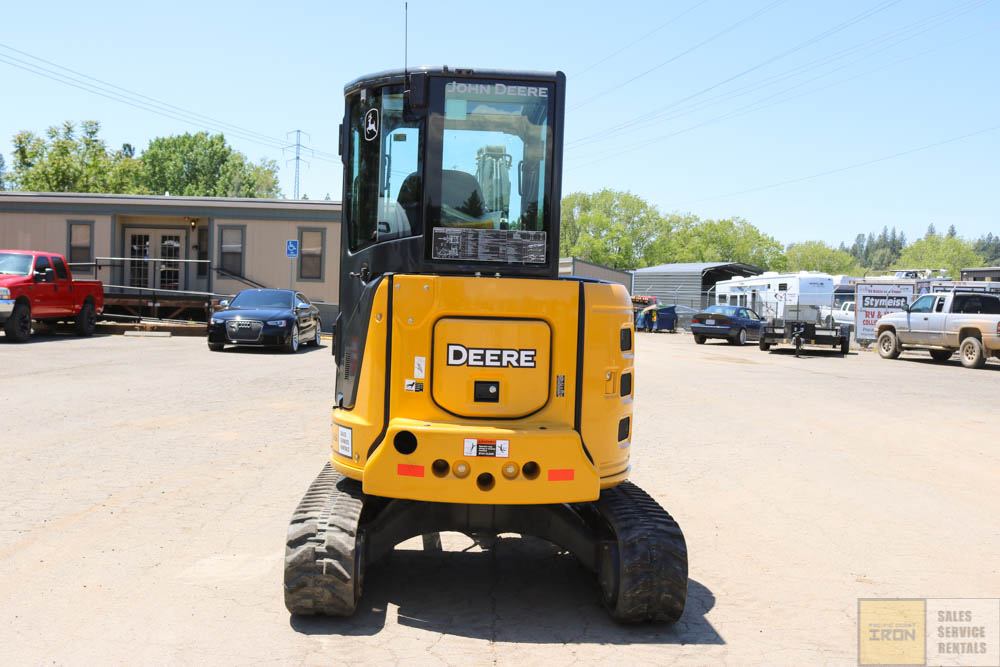

2017 DEERE 35G MINI EXCAVATOR
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

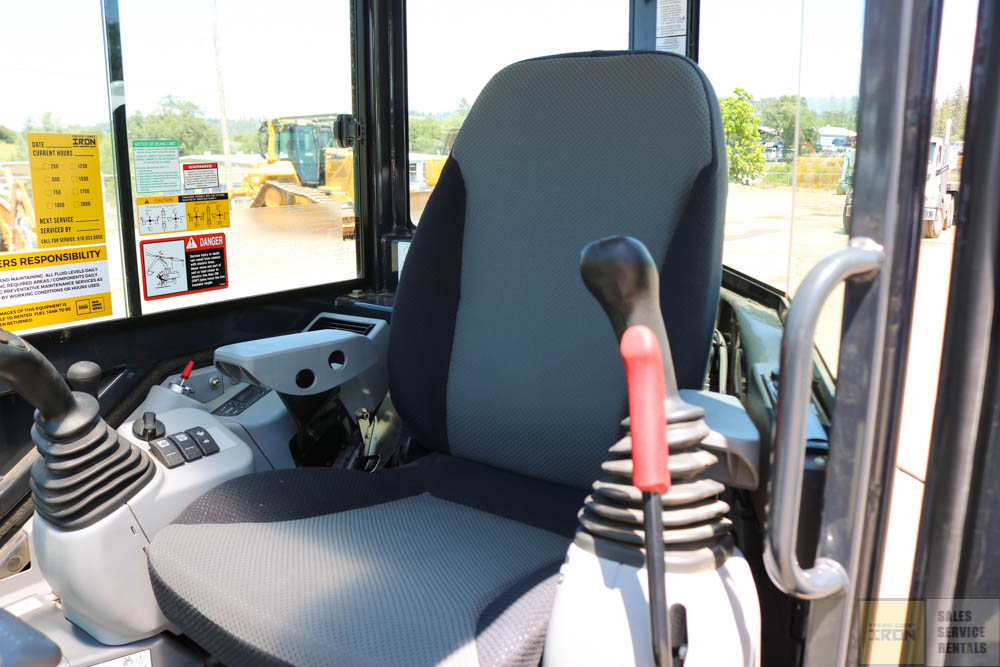

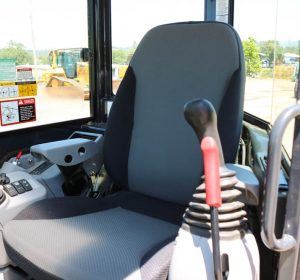

- CAB HEAT/AC
- TIER 4 ENGINE
- HYDRAULIC THUMB
- DEERE COUPLER
- PATTERN CHANGER
- AUX HYDRAULICS
- SWING BOOM

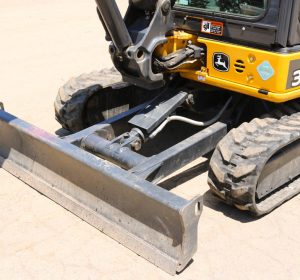

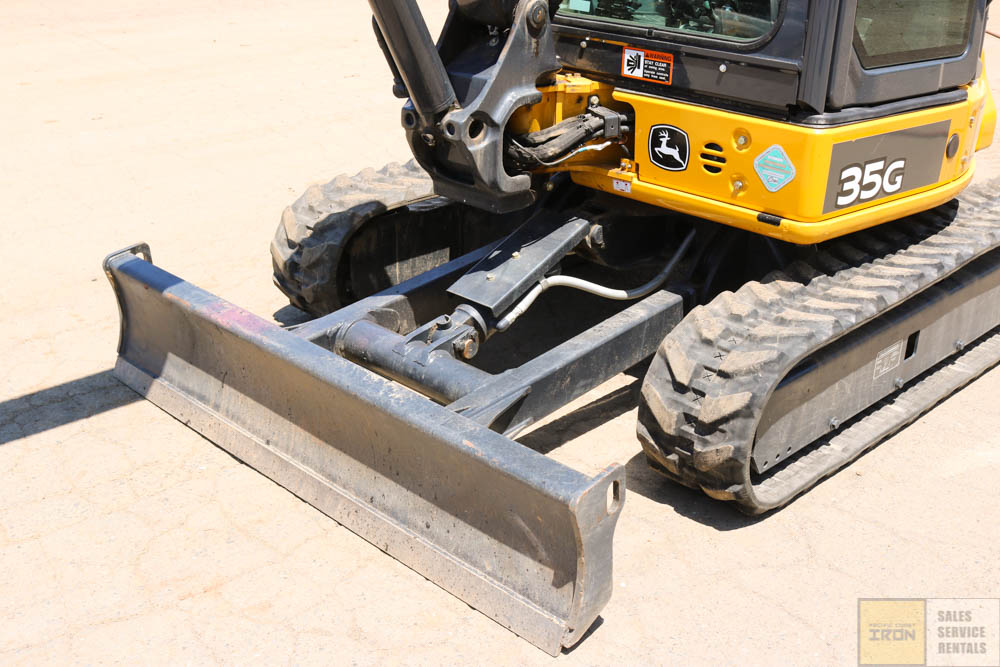

- KNOCK DOWN BLADE
Long Description

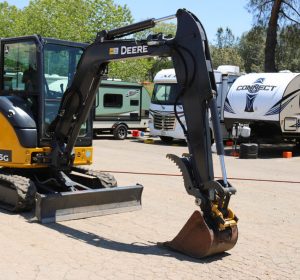

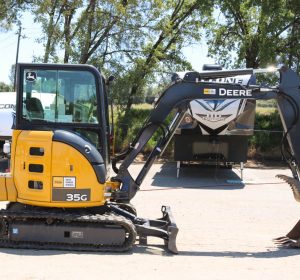

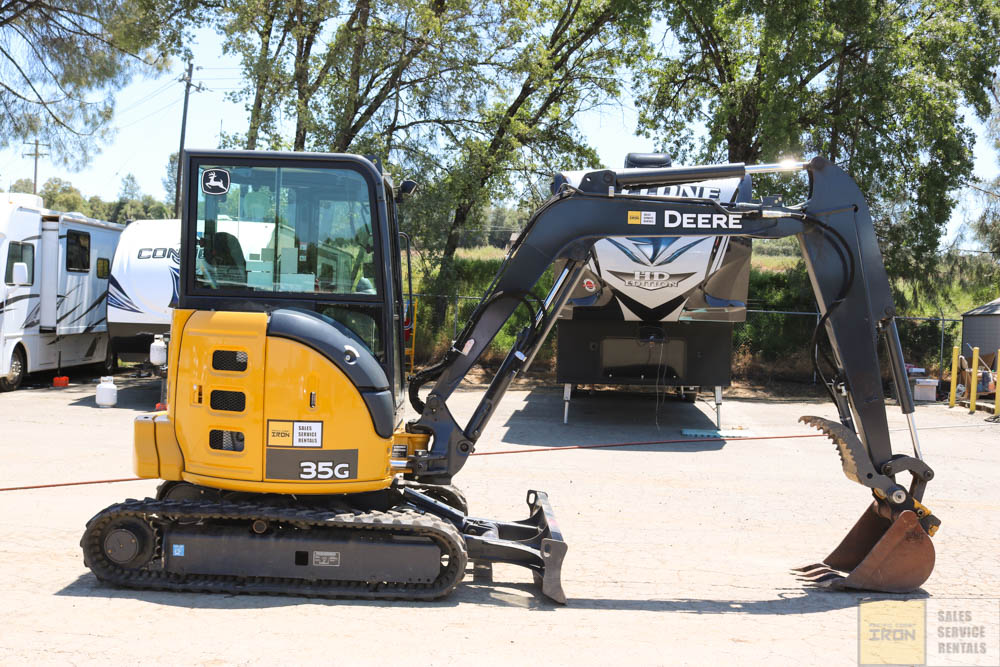

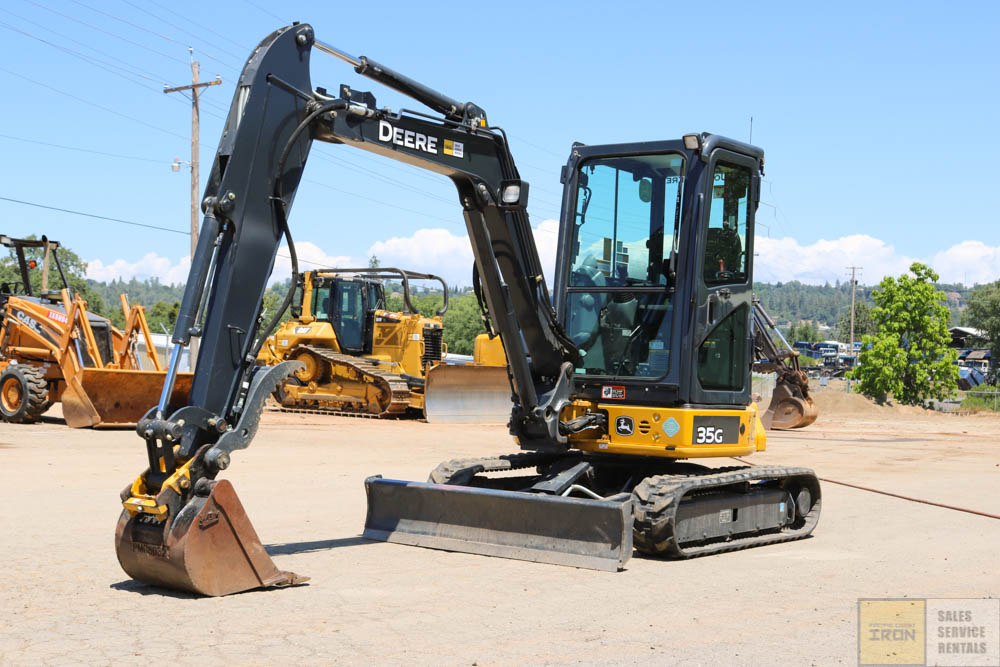

2017 DEERE 35G MINI EXCAVATOR
2017 DEERE 35G EXCAVATOR WITH ONLY 350HRS! UNIT HAS FULL JD POWERTRAIN AND HYDRAILIC WARRENTY UNTIL 2021. UNIT IS EQUIPPED WITH A HYDRAULIC THUMB, Q/C, CAB, HEAT/AC, LONG ARM WITH EXTRA COUNTER WEIGHT, KNOCK DOWN BLADE AND A TIER 4 FINAL ENGINE. COMES WITH 4 BUCKETS. OWNER OPERATED SINCE NEW. READY TO GO TO WORK.
DRIVELINE
| Emission Rating | Tier 4 | |||
|---|---|---|---|---|

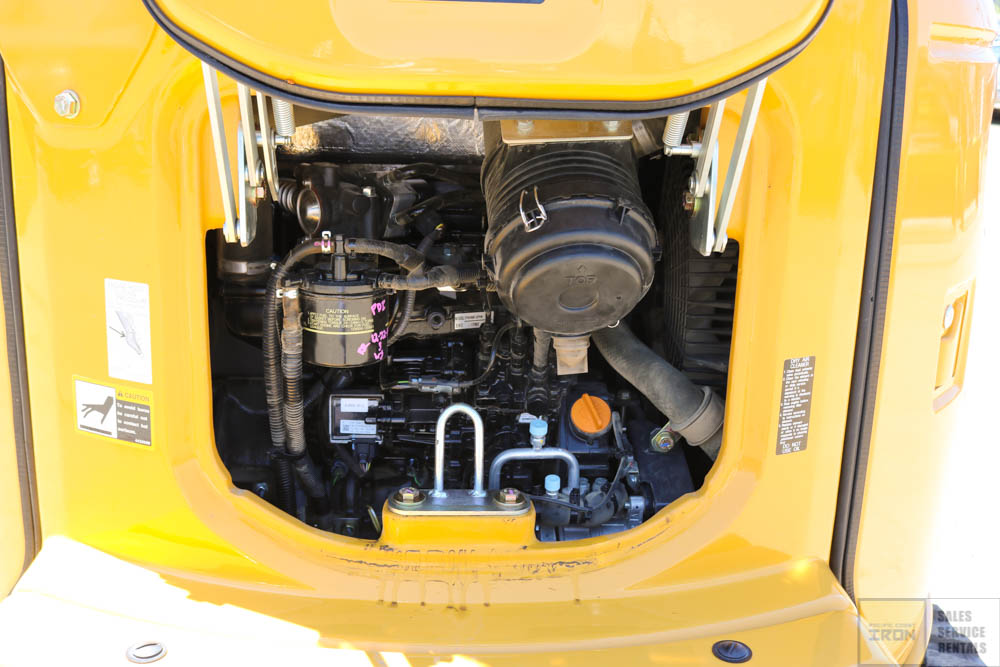

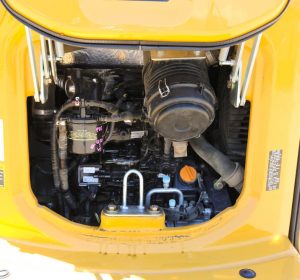

| Engine Manufacturer | Yanmar | |||
| Number Of Cylinders (Per Engine) | 3 | |||
| Displacement, ltr (Inches�) | 1.642 (100.2) | |||
| Rated speed, rpm | 2400 | |||
| Engine Output – Net, kW (hp) | 17.4 (23.3) | |||
| Number Of Carrier Rollers – Each Side | 1 | |||

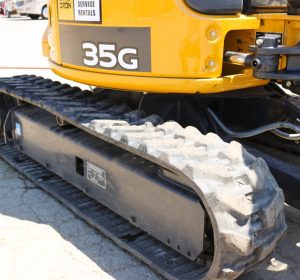

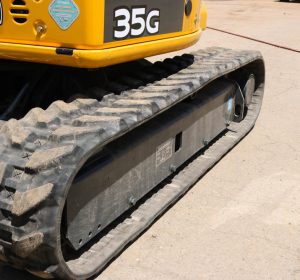

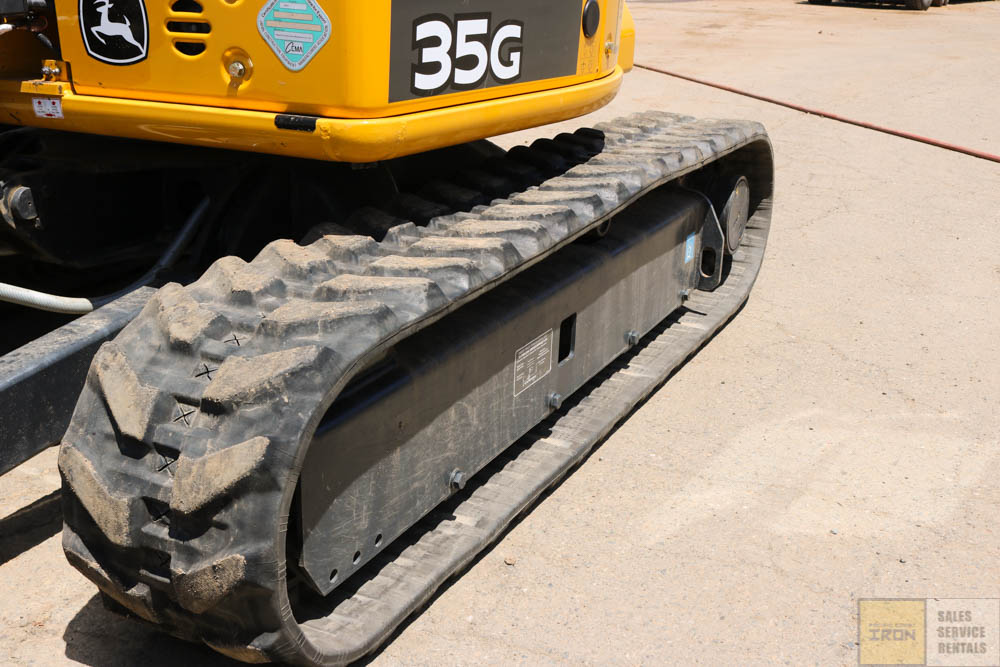

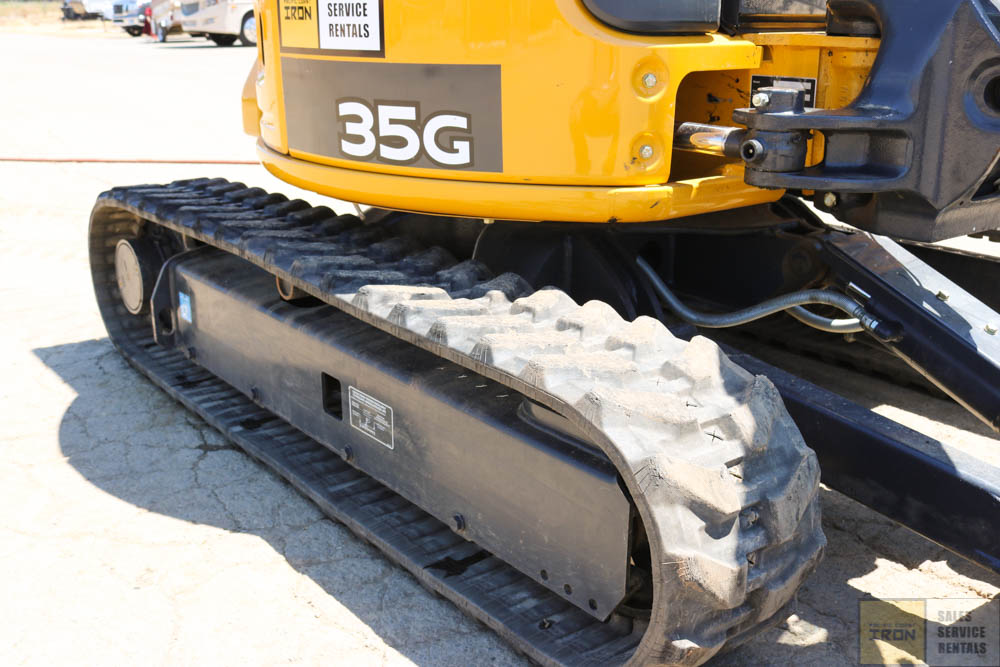

| Number Of Track Rollers – Each Side | 4 | |||
| Track Shoe Width, mm (inches) | 300 (12) |
DIMENSIONS
| Transport Length Mono Boom, mm (ft/in) | 4640 (15 ft 3 in) | |||
|---|---|---|---|---|
| Transport Height – Maximum, mm (ft/in) | 2480 (8 ft 2 in) | |||
| Overall Width, mm (ft/in) | 1740 (5 ft 9 in) | |||
| Track Length On Ground, mm (ft/in) | 1660 (5 ft 5 in) | |||
| Undercarriage Overall Length, mm (ft/in) | 2110 (6 ft 11 in) | |||
| Tailswing Radius, mm (ft/in) | 870 (2 ft 10 in) | |||
| Ground Clearance, mm (inches) | 280 (11) | |||
| Dozer Blade Height, mm (inches) | 373 (14.7) | |||
| Dozer Blade Width, mm (ft/in) | 1740 (5 ft 9 in) | |||
| Width over standard tracks, mm (ft/in) | 1740 (5 ft 9 in) | |||
| Track Gauge, mm (ft/in) | 1440 (4 ft 9 in) | |||
| Digging Reach – Mono Boom, mm (ft/in) | 5210 (17 ft 1 in) | |||
| Dig Height – Mono Boom, mm (ft/in) | 4870 (16 ft ) | |||
| Dump Height – Mono Boom, mm (ft/in) | 3460 (11 ft 4 in) | |||
| Dig Depth – Mono Boom, mm (ft/in) | 3060 (10 ft ) | |||
| Standard Dipper, mm (ft/in) | 1315 (4 ft 4 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 42 (11.6) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 32 (8.5) | |||
| Number Of Batteries | 1 | |||
| Voltage, V | 12 |
PERFORMANCE
| Ground Bearing Pressure, kPa (PSI) | 32 (4.6) | |||
|---|---|---|---|---|
| Slew Speed, rpm | 9 | |||
| Travel Speed – High, kph (mph) | 4.3 (2.7) | |||
| Dipper Tearout, kN (lbf) | 19 (4277) | |||
| Bucket Breakout, kN (lbf) | 27.1 (6085) | |||
| Main Pumps – Maximum Flow, lt/min (gallons (US) / min) | 76.8 (20.2) |
WEIGHTS
| Operating Weight, kg (lbs) | 3520 (7760) |
|---|
