2015 CAT D6NXL DOZER

Price $233,900

Call Today: 916.907.0902

Short Description

FEATURES:

EROPS
DIFF-STEER
TIER 4 INTERIM ENGINE

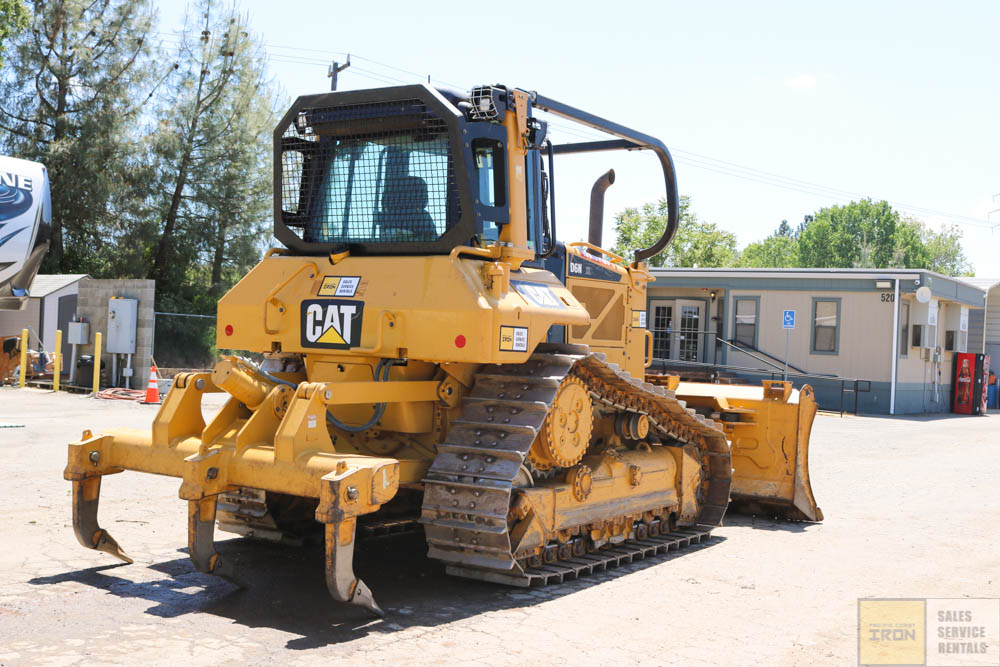

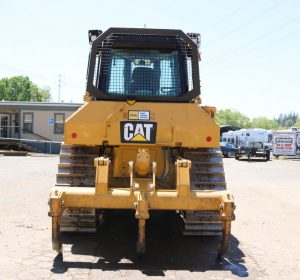

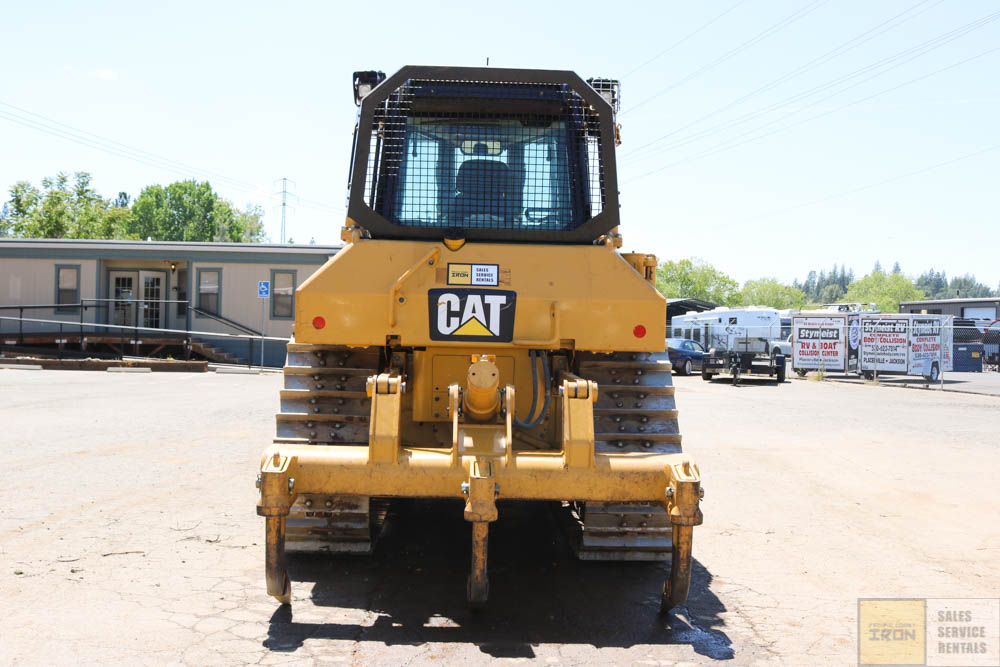

MS RIPPER

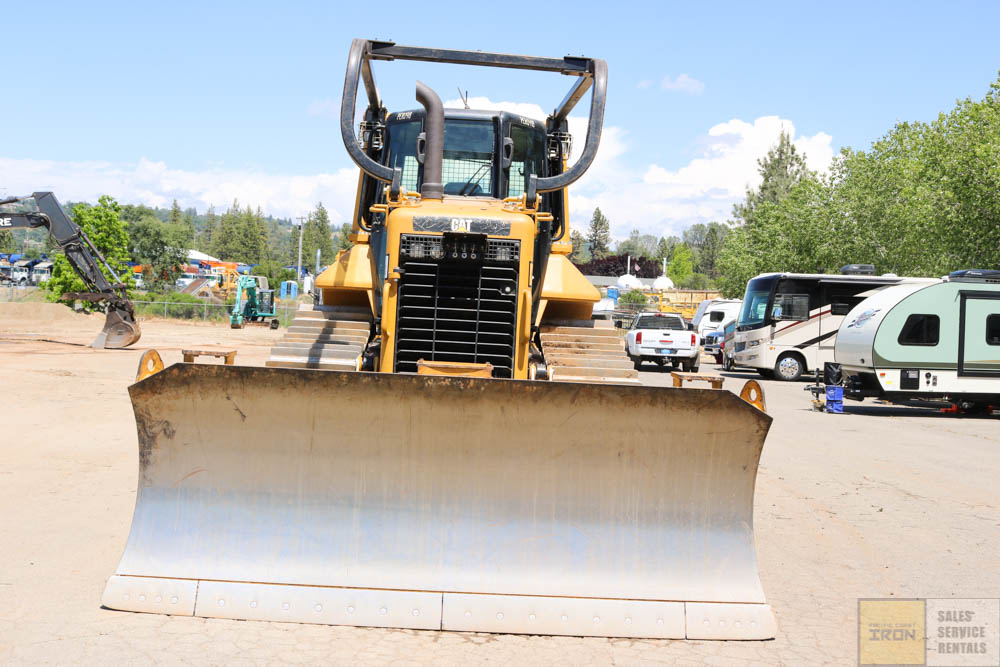

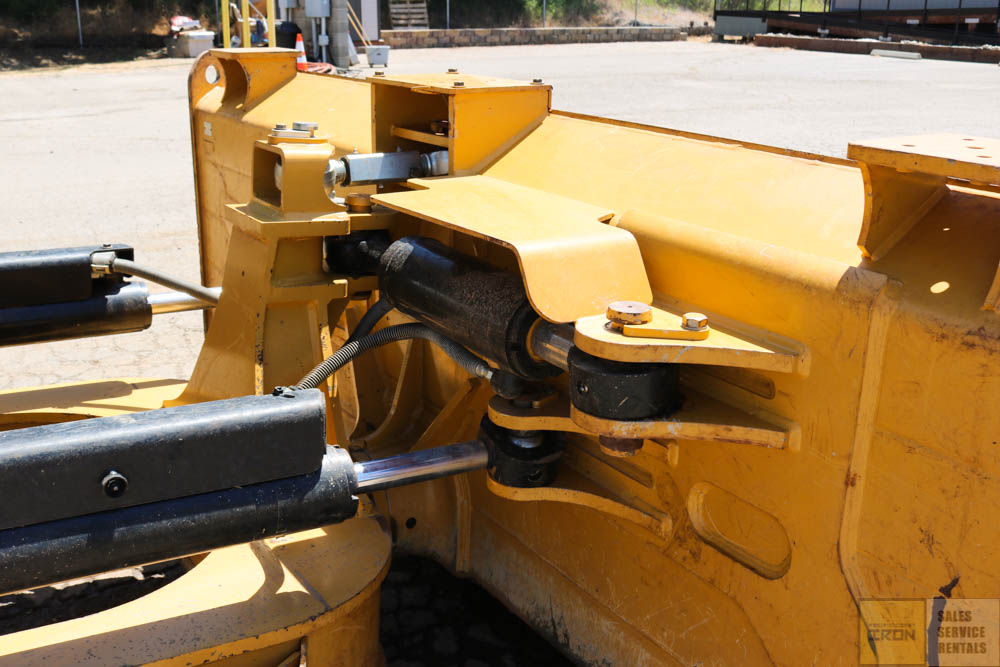

PAT BLADE

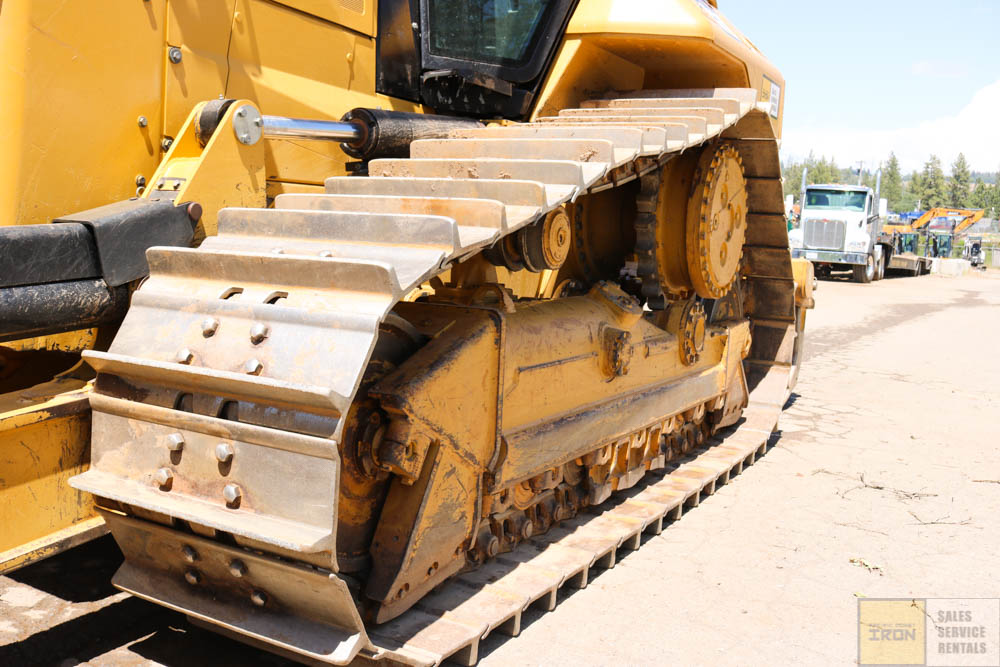

HD UC
FORESTRY PACKAGE
BLADE SHAKE

Category: Dozers

Long Description

Description

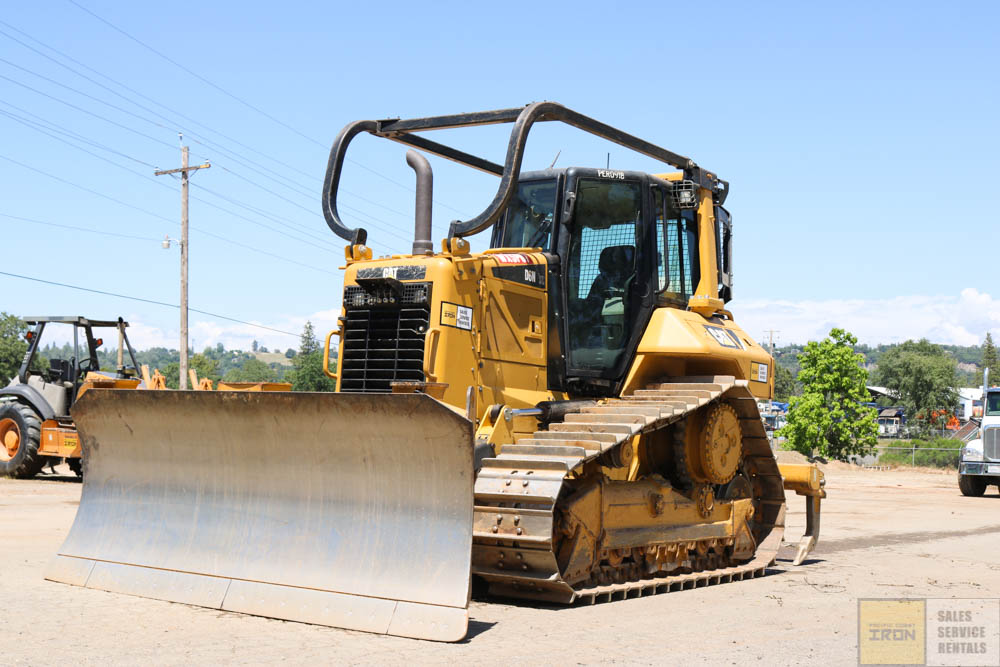

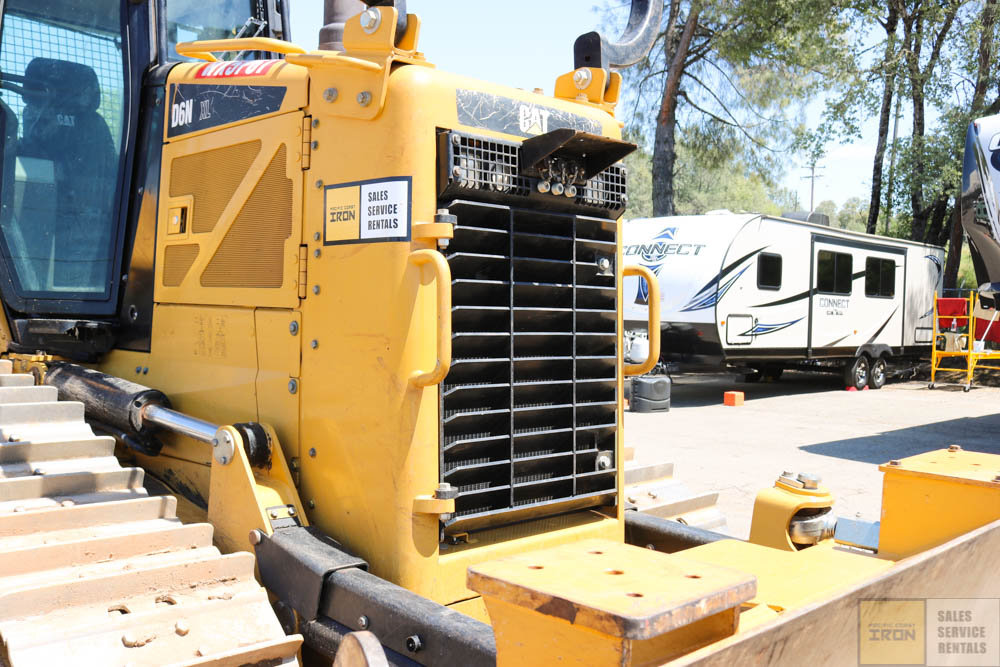

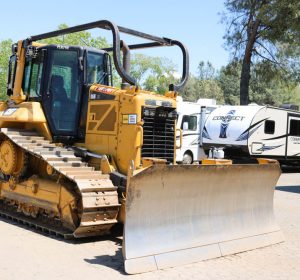

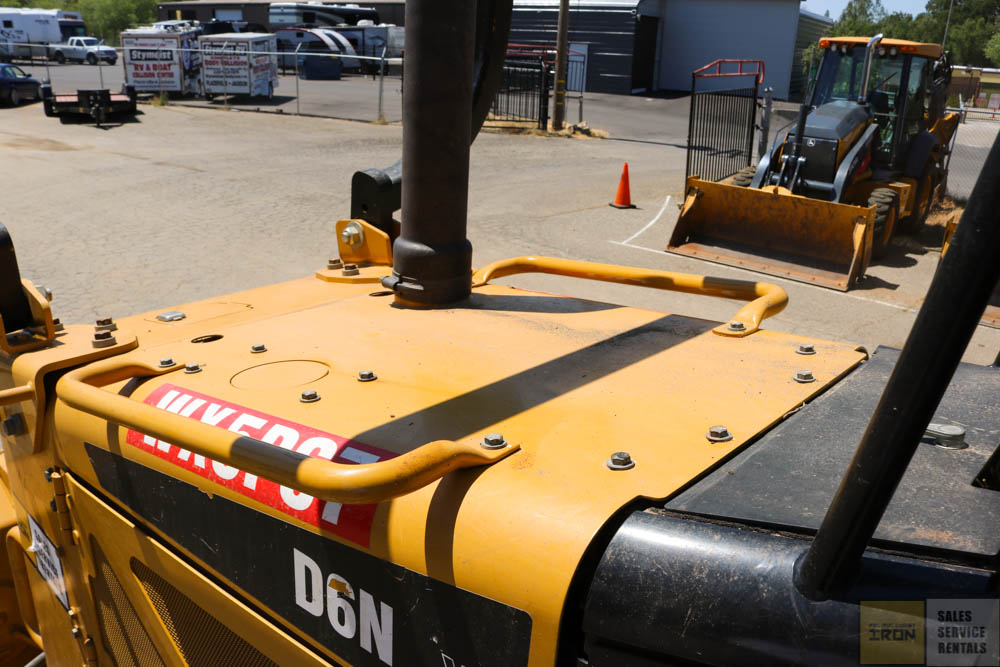

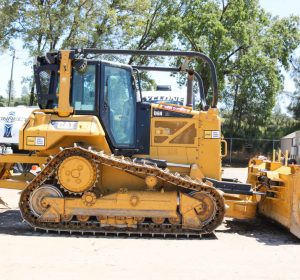

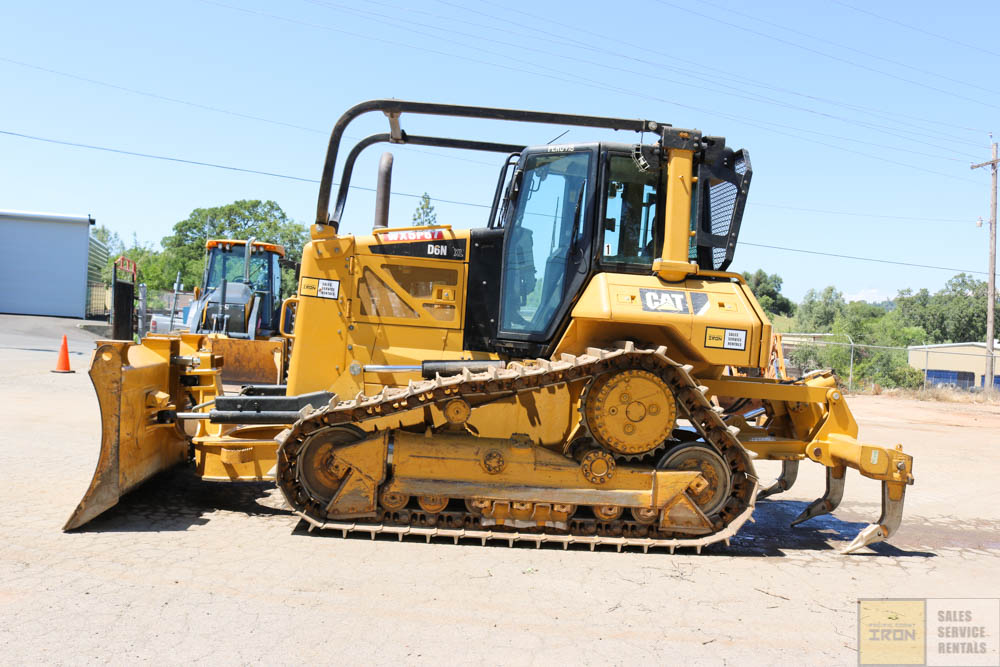

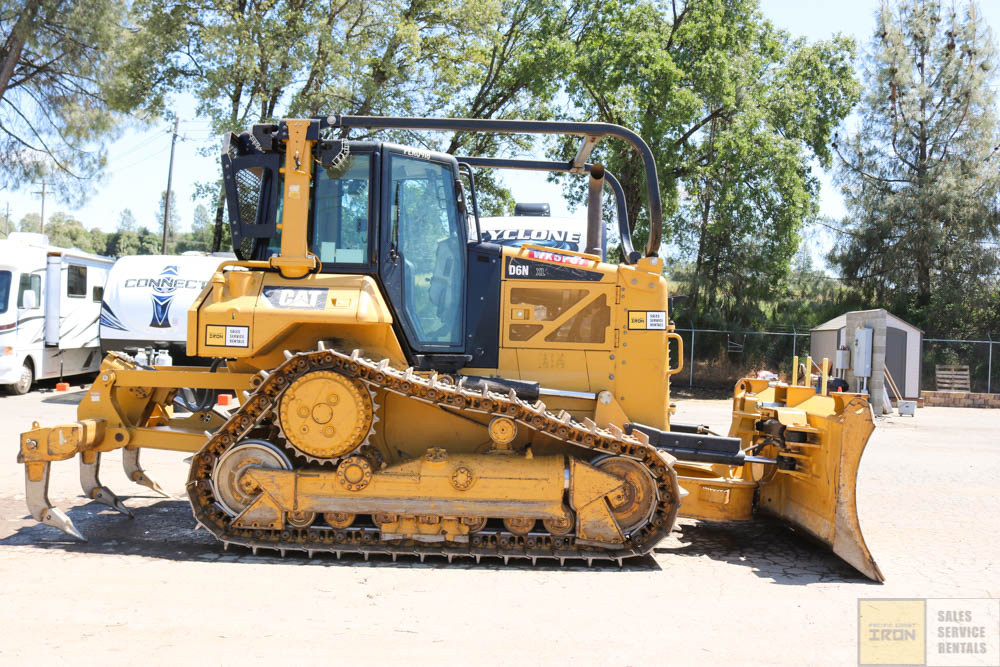

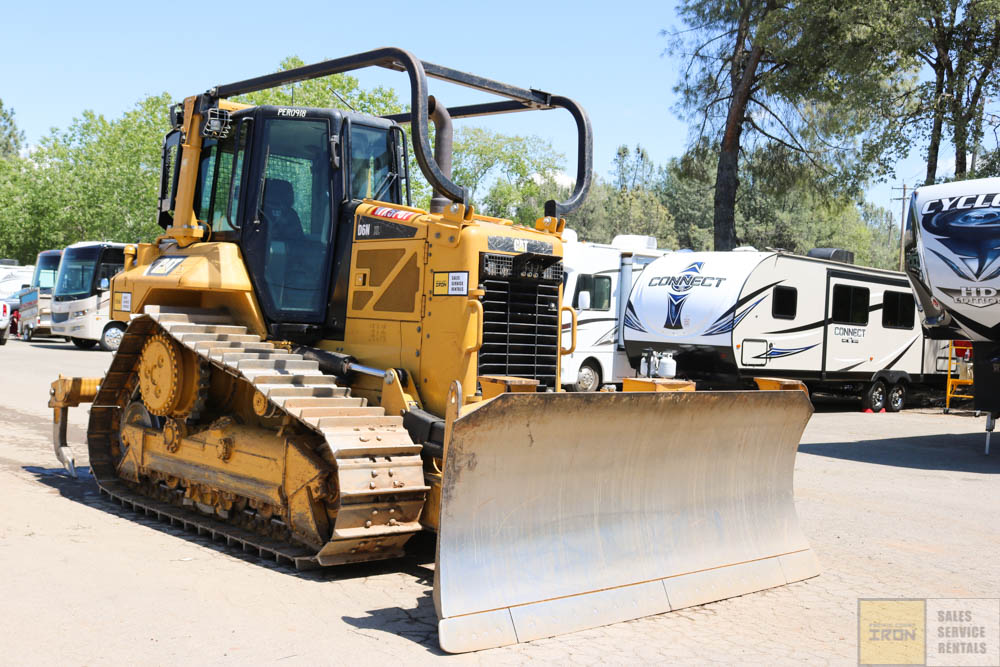

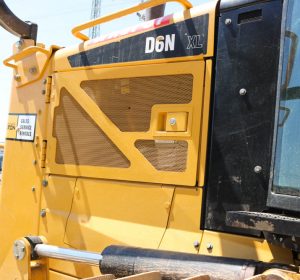

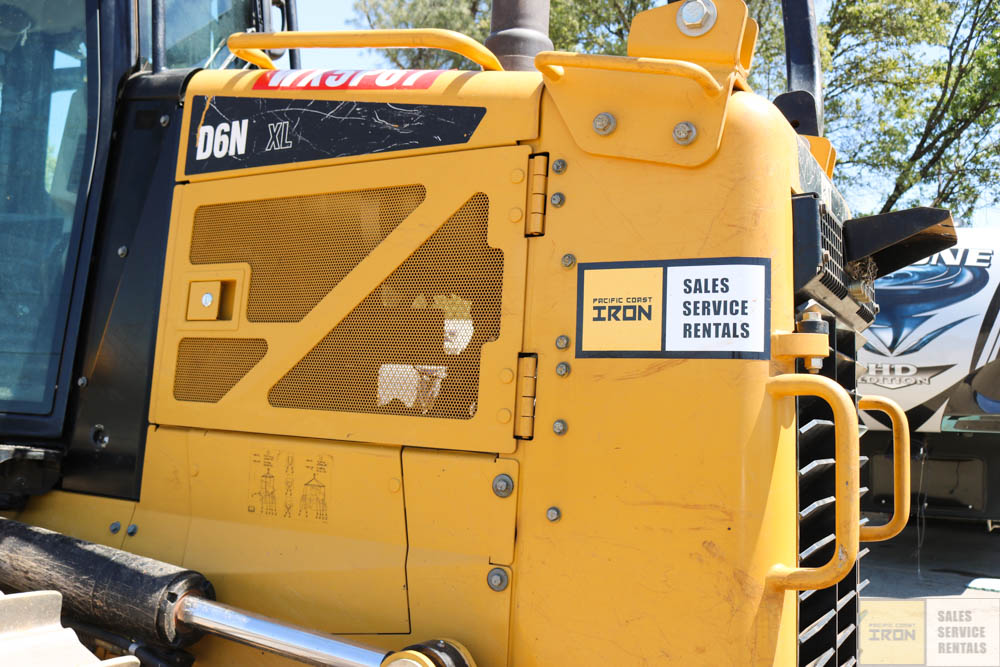

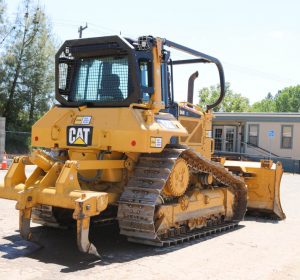

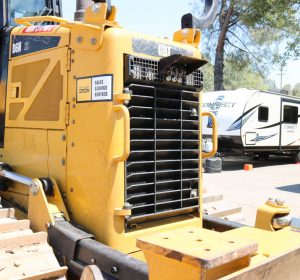

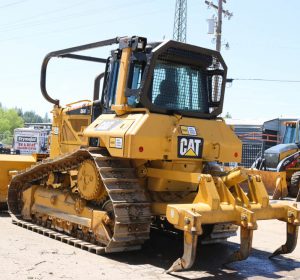

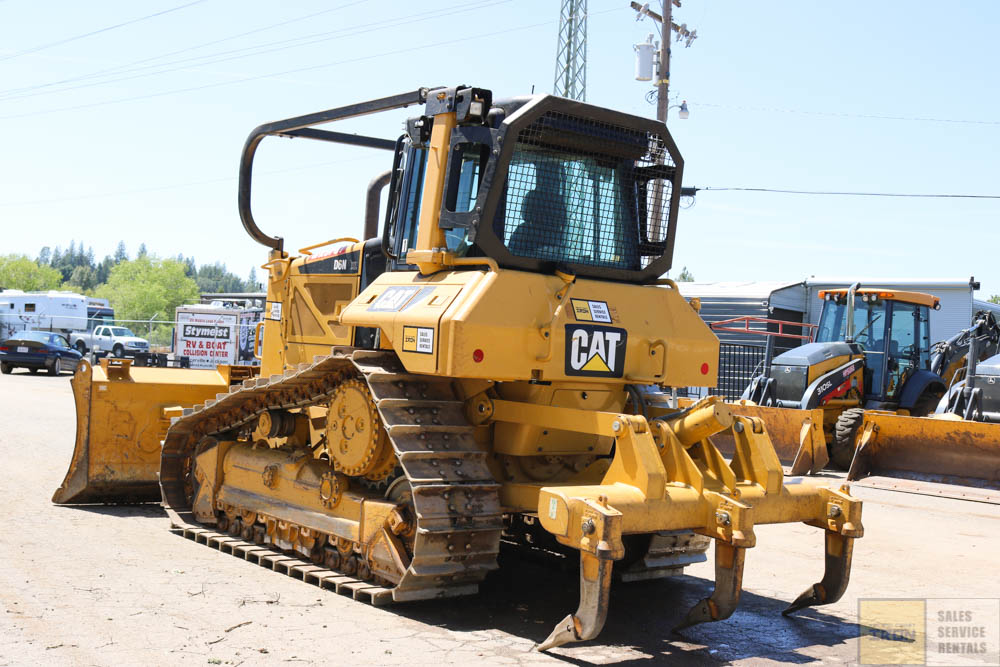

2015 CAT D6NXL DOZER FOR SALE

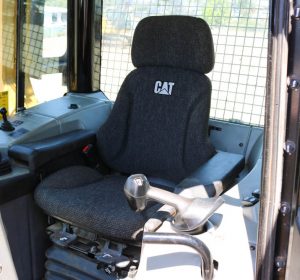

2015 CAT D6NXL DOZER WITH 1800HRS. UNIT HAS A CAT POWERTRAIN/HYDRAULIC WARRENTY UNTIL 2020. UNIT IS EQUIPPED WITH A PAT BLADE, MS RIPPER, ACUGRADE READY, BLADE SHAKE, CAB HEAT/AC, PRODUCT LINK, FORESTRY PACKAGE, HD UC, AND A TIER 4 INTERIM ENGINE. JUST SERVICED AND READY TO GO TO WORK.

Selected Dimensions

Dimensions
B. Width Over Tracks	8.2 ft in	2500 mm
C. Height to Top of Cab	10.2 ft in	3095 mm
D. Length of Track on Ground	8.5 ft in	2581 mm
E. Ground Clearance	1.3 ft in	394 mm
F. Length w/o Blade	12.3 ft in	3740 mm

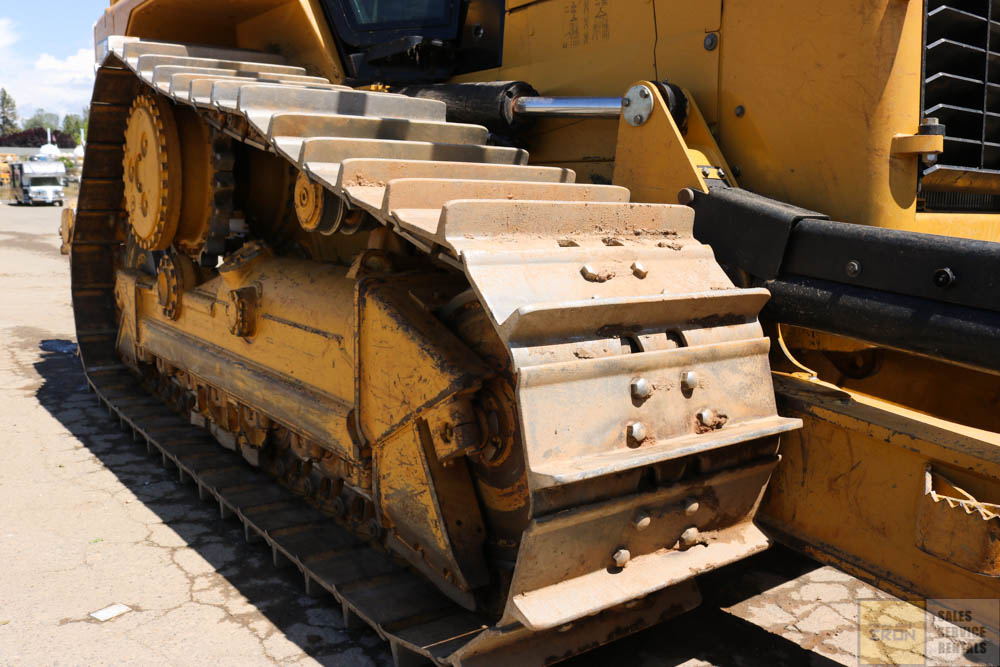

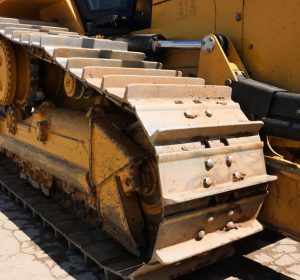

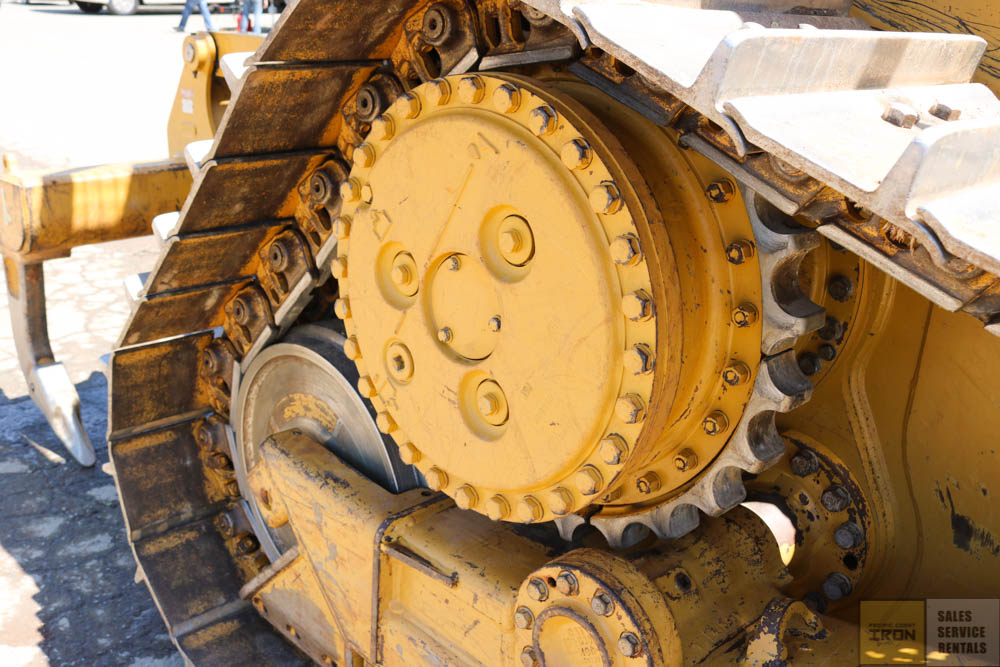

Undercarriage
G. Track Gauge	6.2 ft in	1890 mm
H. Standard Shoe Size	24 in	610 mm

Specification

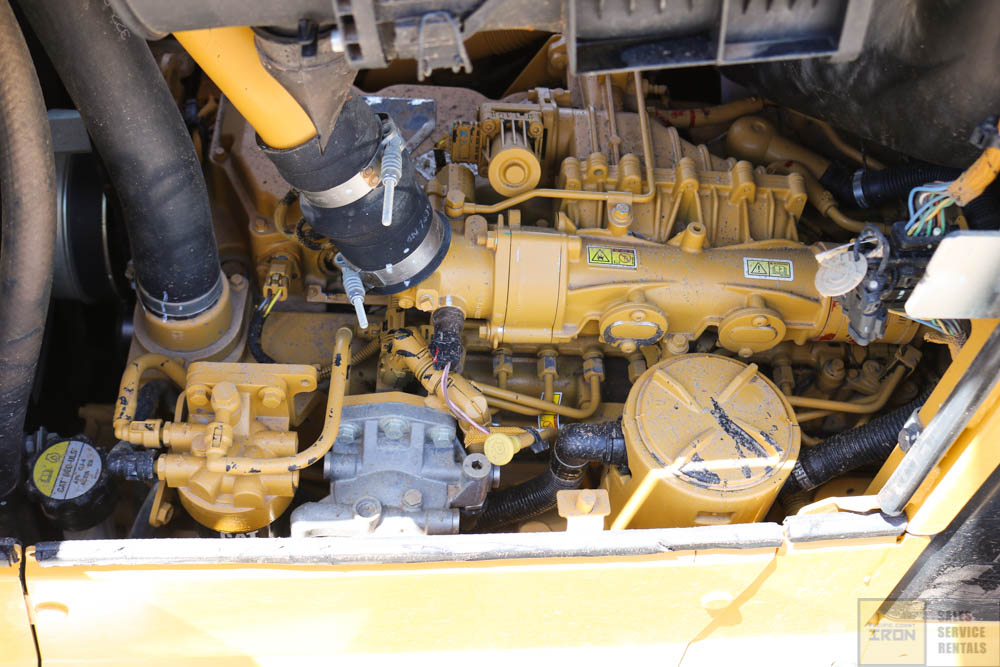

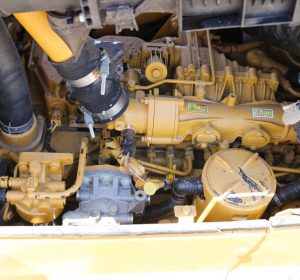

Engine
Make	Caterpillar
Model	C6.6 ACERT
Net Power	145 hp	108.1 kw
Power Measured @	2200 rpm
Displacement	439.4 cu in	7.2 L
Number of Cylinders	6
Operational
Operating Weight	36610 lb	16605 kg
Fuel Capacity	79 gal	299 L
Cooling System Fluid Capacity	9.2 gal	35 L
Hydraulic Fluid Capacity	7.8 gal	29.5 L

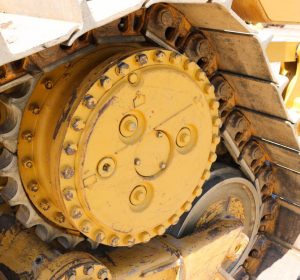

Final Drives Fluid Capacity	1.8 gal	7 L
Operating Voltage	12 V
Alternator Supplied Amperage	70 amps
Transmission
Type	powershift
Number of Forward Gears	3
Number of Reverse Gears	3
Max Speed – Forward	6.3 mph	10.1 km/h
Max Speed – Reverse	7.5 mph	12 km/h

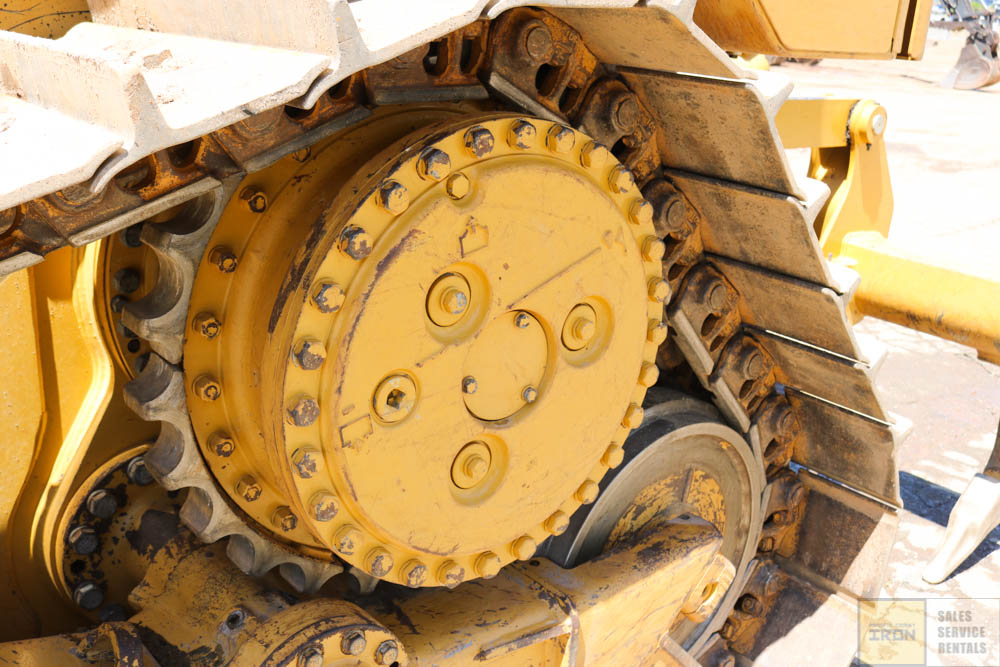

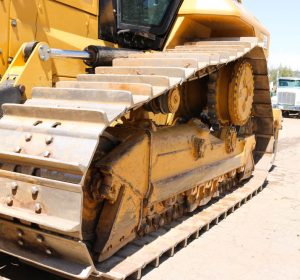

Undercarriage
Ground Pressure	7.5 psi	51.6 kPa
Ground Contact Area	4882 in2	3.2 m2
Standard Shoe Size	24 in	610 mm
Number of Shoes per Side	40
Number of Track Rollers per Side	7
Track Gauge	6.2 ft in	1890 mm

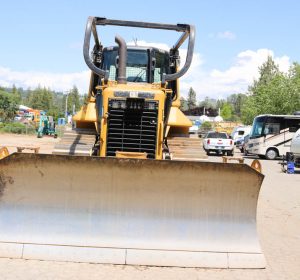

Standard Blade
Width	10.7 ft in	3272 mm
Height	49 in	1244 mm
Capacity	4.2 yd3	3.2 m3
Cutting Depth	20.5 in	520 mm
Dimensions
Length w/o Blade	12.3 ft in	3740 mm
Width Over Tracks	8.2 ft in	2500 mm
Height to Top of Cab	10.2 ft in	3095 mm
Length of Track on Ground	8.5 ft in	2581 mm
Ground Clearance	1.3 ft in	394 mm
